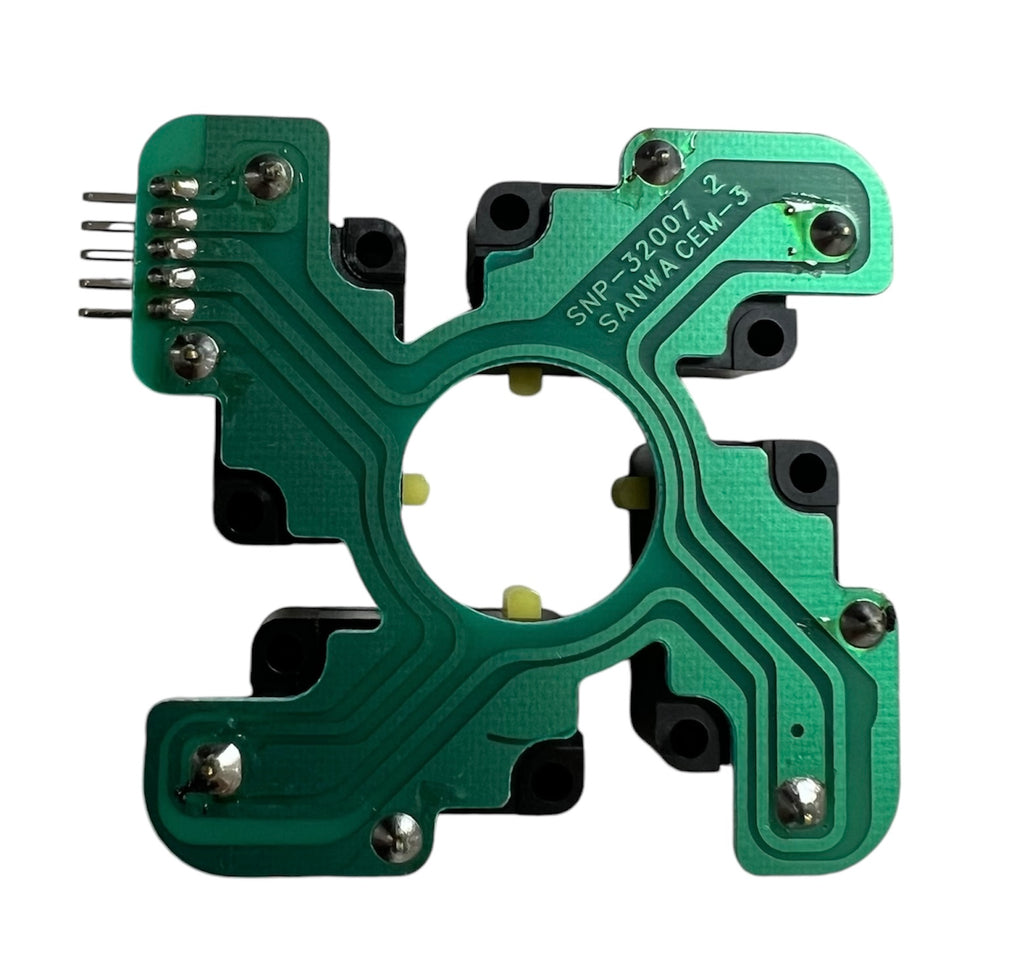

Adjustable TPML Switch PCB

Sanwa Denshi developed a new Silent lever with switches that allow the operation timing for each individual switch allowing each direction to be adjusted accordingly.  With the TPML PCB, converting the standard JLX or JLF levers to an adjustable silent joystick much easier

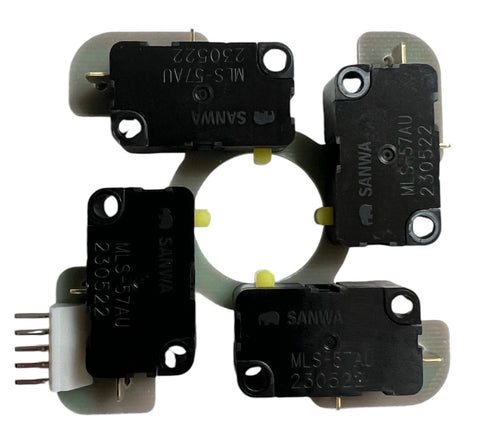

Configurable Switch Assembly

Each switch can be adjusted in five positions, making it easy for individual users to adjust the actuation timing per directional input

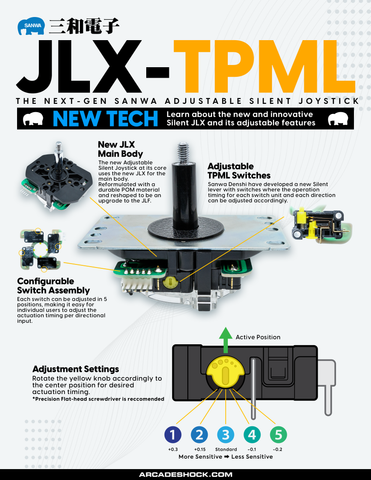

Adjustment Settings

Refer to our TECH DIAGRAM on how to adjust the switches to your liking

Quick Link:  https://tinyurl.com/TPMLMAPCCB
