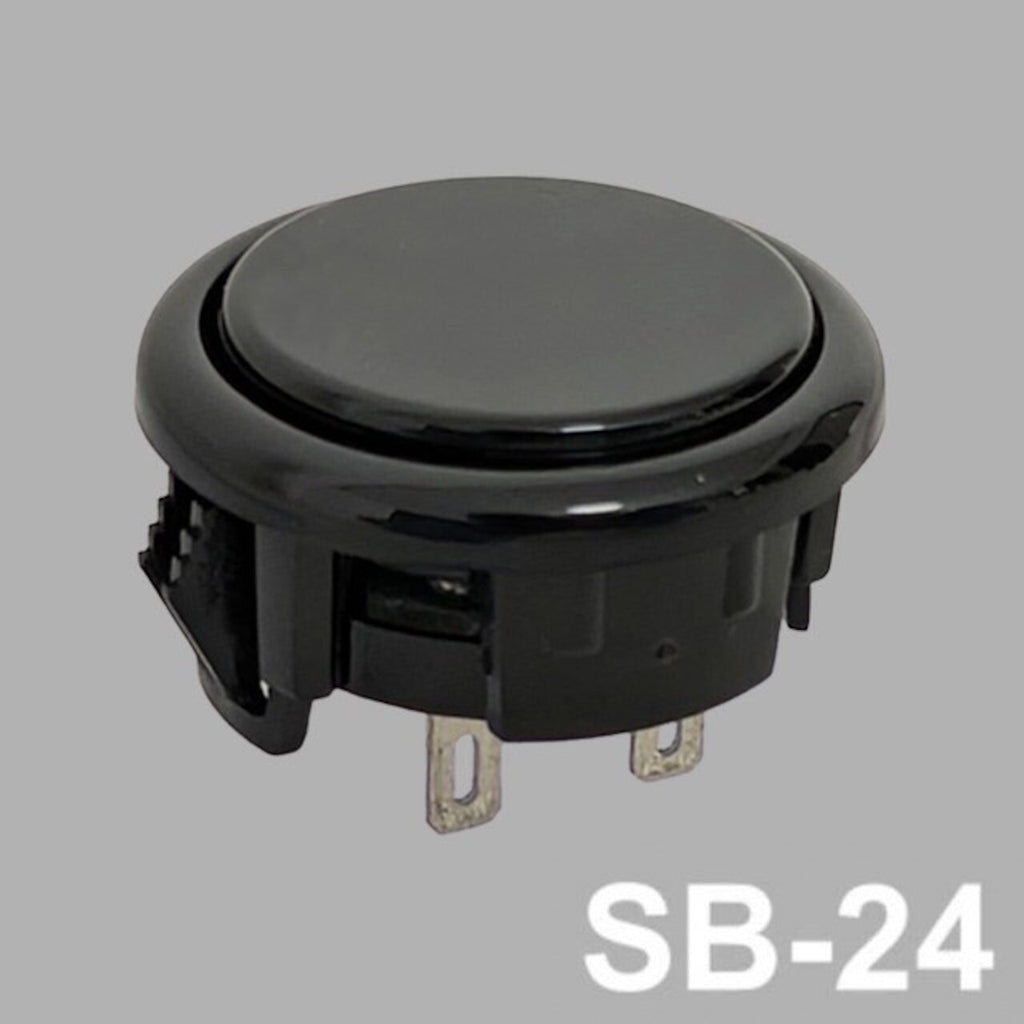

oneFRAME 24mm Premium Pushbutton
What are OneFRAME Buttons?
OneFRAME fighting game buttons are the result of close collaboration with top competitive players and elite controller builders. Designed for maximum responsiveness and elite performance, these buttons deliver a uniquely satisfying press and set a new standard in competitive play.
Performance You Can Feel
From the moment they're installed, your controller reaches tournament-grade precision:
-
Actuation Point: 0.3mm
-
Total Stroke: 0.5mm (center press)
This ultra-shallow actuation delivers lightning-fast input without sacrificing tactile feedback—perfect for high-level execution and flow.
Built to Compete
-
Uses Omron D2LS-21 (20M) switch: long-lasting and stable
-
Highly durable micro-switch unit resists malfunction even under stress
-
Maintains a solid, deliberate press feel while achieving an incredibly short travel
-
Tested and developed using Japanese quality control facilities
Note on Maintenance
To ensure optimal performance and longevity, disassembly or reassembly is not recommended. The button is designed as a high-integrity, standalone unit.
Specifications
| Feature | Detail |
|---|---|
| Supported Hole Diameter | 30.1 ± 0.1 mm |
| Button Thickness | ~4.0 mm |
| Material | Polycarbonate |
| Contents | SB-30 (30mm button) × 1 |
| Switch |
Omron D2LS-21 (rated for 20 million actuations) |
Controller Case Compatibility
These pushbuttons are new to our lineup, and as we continue to gather feedback, we will expand our list of compatible controller cases.
One of the most frequently asked questions is whether these pushbuttons work with the Victrix KO or Razer Kitsune. The short answer is: No.
Controllers like the Victrix KO and Razer Kitsune use keycaps rather than traditional pushbutton plungers and caps. These keycap-style controllers typically rely on a custom PCB with fixed switch housings, meaning they do not support standard pushbuttons that use .110 quick-disconnect terminals.
We will continue updating the list below as we confirm more cases through internal testing and user feedback.
✅ Confirmed Compatible Cases:
-
hitBOX Ultra
-
AS Traveler
❌ Confirmed Incompatible Cases:
-
Punk Workshop
If you're unsure whether your case is compatible, feel free to reach out to us with details, and we’ll do our best to assist you.
Quick Link: https://tinyurl.com/oneFRAME24mm
