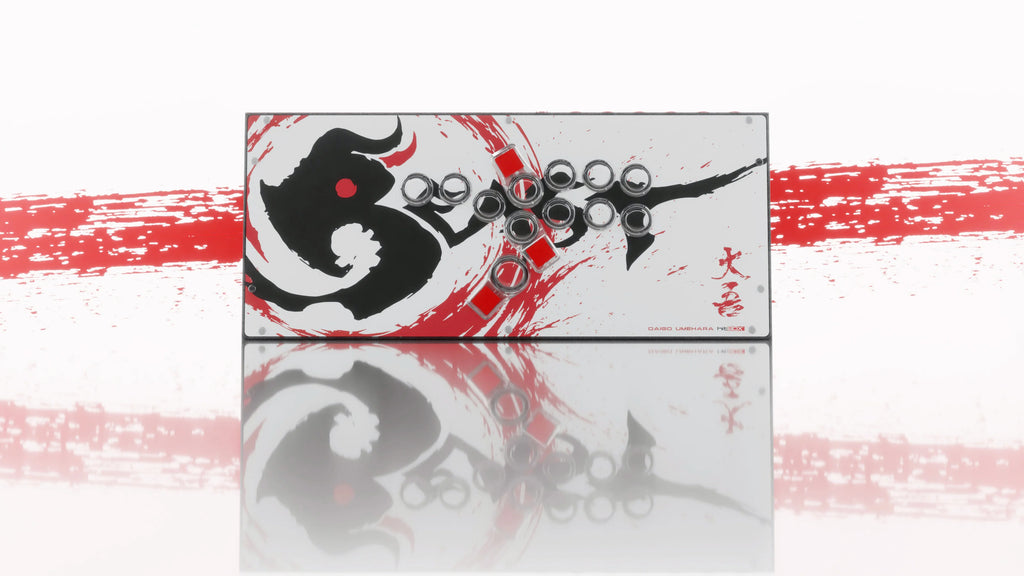

The official Daigo Umehara Hit Box model from Hit Box Arcade. Evolution of the Hit Box Ultra platform custom-configured to Daigo’s specifications with premium parts and layout enhancements.

Specifications & Features

Compatibility

• Works with PlayStation 5, PlayStation 4, Nintendo Switch & Switch 2, and PC — plug-and-play via USB.

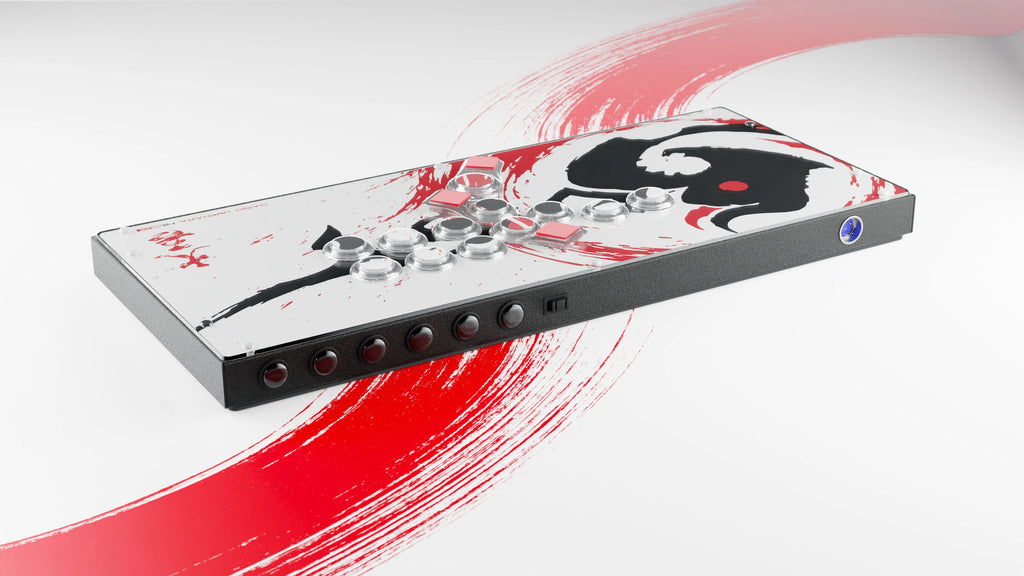

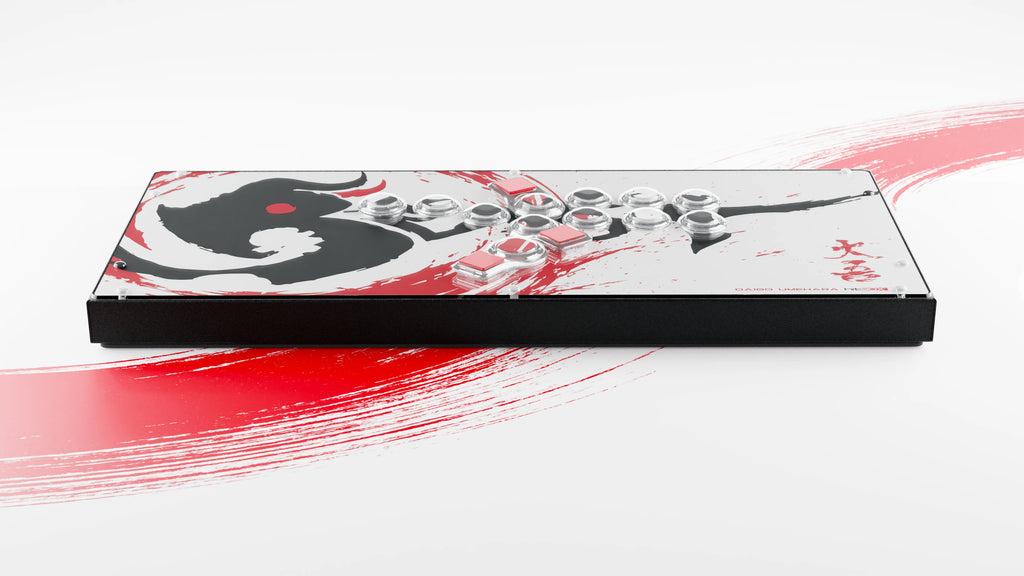

Case & Build

• Slim steel case with bezel-less printed art and thick acrylic top for durability and premium feel.

• Magnetic removable bottom plate — makes maintenance, modding, or custom art swaps easier.

• Dimensions: ~407 × 178.6 × 27 mm (16" × 7" × 1").

• Weight: ~1.7 kg (3.75 lbs).

• Anti-slip bottom surface for stable play.

Button System

C.O.M.B.O. Buttons (Main Buttons)

• Cherry MX Low Profile Speed Silver microswitches with C.O.M.B.O. augmentation.

  • Actuation: ~0.3 mm (ULTRA speed).

  • Total travel: ~1.0 mm with SUPER optimizers installed.

  • Optimizer Sets Included:
    • 0.65 mm (ultra short travel)
    • 1.0 mm (super; default)
    • 1.5 mm (classic feel)

  • Optional: remove optimizers for ~2 mm travel and more traditional arcade feel/sound.

• Top-unlocking button rim for easy cleaning and part swaps.

• Standard arcade quick-disconnect wiring terminals.

C.O.M.B.O. Extensions (Extra Buttons)

• Adds three square-shaped extras for L3, R3, and Touchpad/TP inputs.

• Uses Kailh PG1425 X microswitches: ~1.5 mm actuation, ~2.0 mm total travel.

• Extensions are rotatable for personalized ergonomic placement.

• Terminal block + modular switch board allows rewiring to alternative inputs (like extra Direction buttons).

🎛 Functional Controls

• SOCD modes (Simultaneous Opposing Cardinal Directions) for standardized directional input behavior.

• Console boot modes to ensure correct detection/behavior on different systems.

• Directional Output Modes accessible via specific combos on startup.

• Tournament mode switch locks auxiliary/menu buttons for competition compliance.

🔌 Connectivity

• Detachable USB-A cable (approx. 3 m / 9.8 ft) with sturdy quick-release connector.

• USB port sits flush with the case for a sleek competitive setup.

Included in the Box

• Beast Box controller chassis

• Detachable USB cable

• Hit Box sling bag & microfiber cloth

• Full suite of C.O.M.B.O. optimizer accessories

• Three spare C.O.M.B.O. extension caps (red)

• Three extension shields for protection/custom look
