NOTE:  This is for the parts kit only, not a full pre-assembled joystick

Building on the popular and effective OTTO V1, V2 and V5 original line, OTTO expands the mod kit family with the V2+ and V5+ series

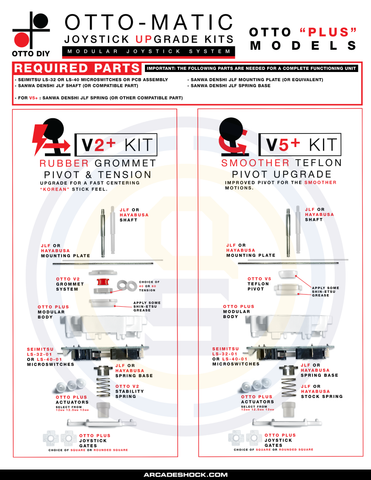

Both these kits are unique as they can use the base pcb assembly of Seimitsu's LS-32, LS-40 or individual compatible switches in complement with some JLF parts (spring, spring boot, JLF base plate or compatible and JLF shaft) to work with the OTTO Plus kits (see diagram for assembly and required parts)

This kit is geared towards two types of users.   In today's modding market, many users have parts from both Seimitsu and Sanwa Denshi, mainly the LS-32/40 and the JLF line, which this kit will require parts from each.   Furthermore, the PLUS kits allow swapping out the switches easily (fastener type - which will require the .187 to 5-pin harness) for those who want to test and experience different tensions to optimize their gameplay

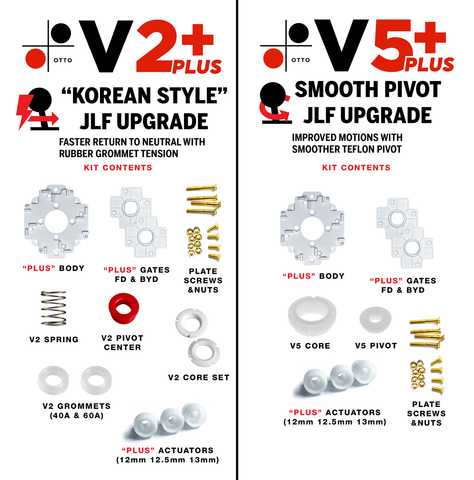

Kit Contents

• See attached packing list contents

Parts Required to Complete the Fully Built Joystick

• Sanwa Denshi JLF Base Plate or Equivalent (Hori Hayabusa Plate works as well); Seimitsu SE or SS (for LS32/38), New MS or Universal Plate
• Sanwa Denshi Spring (original - we have not tested these with our EX Springs yet - pending) - with our V2 Spacer for the V2 Kit will not require a spring
• Sanwa Denshi Spring Boot (this is the plastic piece that holds the spring in place) -This part is not required for the V2+ Kit if you are using our V2 Spacer in it's place
• Sanwa Denshi Shaft (JLF) or compatible (Hori Hayabusa joystick shaft works as well)

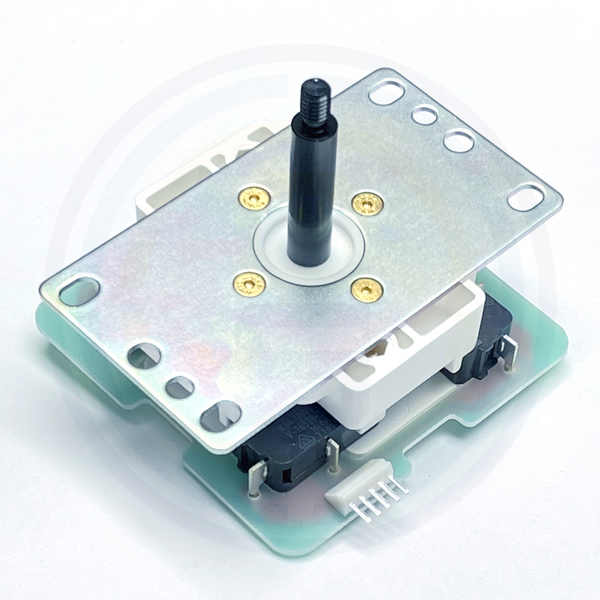

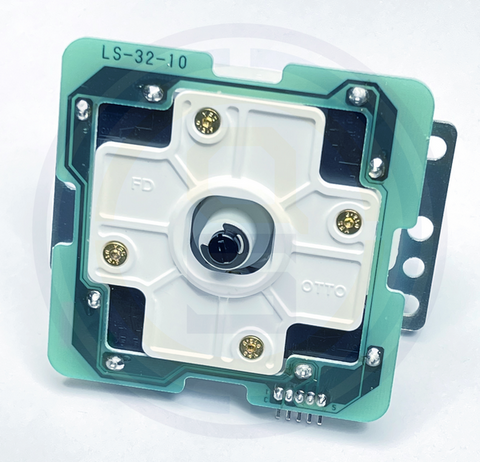

• Seimitsu LS-32/40 PCB Assembly (if you want to use with 5-pin).  You can also use compatible joystick switches that take the .187 connector.  For the switches that we carry, please take a look at the optional accessories below

Quick Link:  https://tinyurl.com/OTTODIYPLUSKITS
