NOTE:  This is the .187 version which was made specifically to work with the IL (Industrias Lorenzo) pushbuttons (concave or convex).  These DO not work with pushbuttons from any other brand we carry in our store.  For all other brands, choose the .110 version

If you plan on using the IL Eurojoysticks for your build, don't forget to add the .187 to 5-pin harness

One of our goals is not only to make your modding projects simpler, but also faster, allowing you more time to work on more time intensive tasks

The Brook UFB was the start of easing the learning curve to stick modding to add multiple system compatibility to the current stock ones.  The typical connectivity was to take each existing wire and connect them directly to the terminal block, which isn't difficult by any means, but it is time consuming, compared to what this harness will offer (especially for fresh stick mods)

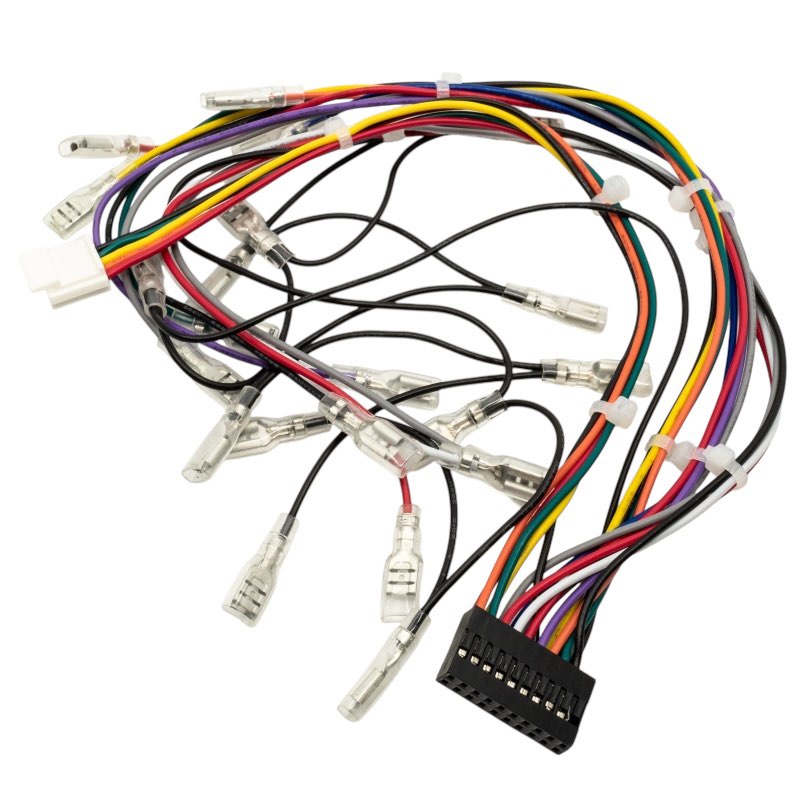

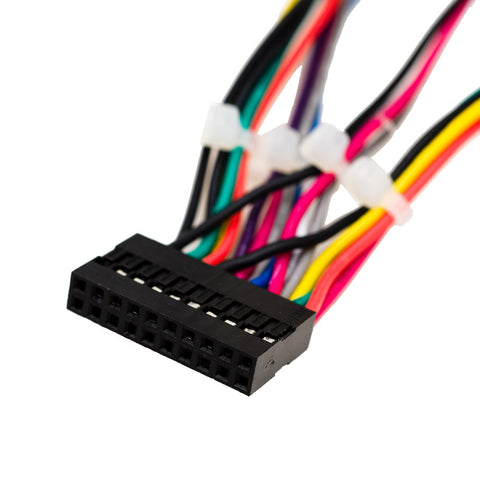

This has a 20-pin connector on one side (which connects to a 20-pin on the Brook UFB - basically you plug it in and that's it.  No more individual wires going from the terminal block.  This is super clean and easy

This branches out to the pushbutton (2 sets of 4 button harnesses) and a 3-pin for control.  5-pin JST connector (works with Sanwa Denshi JLF, Hori Hayabusa and Seimitsu joysticks)

In short, for new mods, this cable will easily save you 15-30 minutes of modding time (to make this cable from scratch), depending on your level of experience

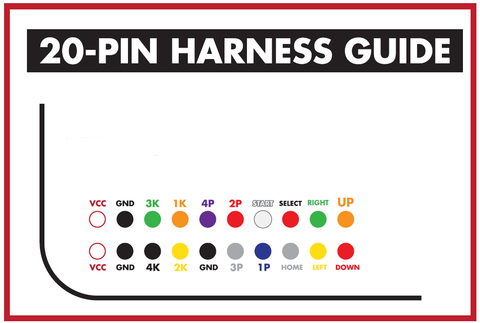

Drag and drop diagram for pin-outs

Quick Link: https://tinyurl.com/QC20P187
